- Compact size allows for convenient movement
- Multiple sample verification
- Fast tube discharge speed
| Maximum Tube Feed Quantity | Continuous tube loading |
|---|---|
| Tube Ejection Speed | 3.2 sec |
| Tube Supply Method | Direct tube supply |
| Compatible Tube Types | Diameter: 13~18mm / Length: 82~128mm |
| Printing Resolution | 203 dpi |
| Label Printing Method | Thermal Printing |
| Compatible Label Size | Width: 36mm~50mm, Length: 22~35mm, Label Quantity: 1,000 labels (per 1 label roll) |
| Product Dimension | 190(W) x 267(H) x 354(D) mm |
| Product Weight | 6.5 kg |
| Power | DC 24V 3A |
| Interface | USB, TCP/IP, Serial |
| Certification | CE, KC, RoHS |
- Automated barcode labeling
- Elimination of human errors associated with manual operations
- Streamlined and efficient blood collection process

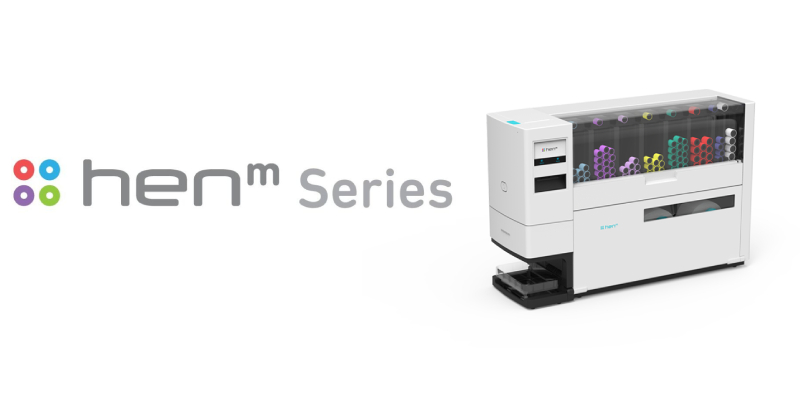

| Model Name | HENm |
|---|---|
| Production Volume (Hourly Tube Production) | 1,200 Tubes |
| Tube Discharge Speed | 3sec (per 1 Tube) |
| Tube Loading Capacity | Max 140ea 13x75mm, 13x100mm (Single Inlet): 20ea 16x100mm (Single Inlet): 18ea 13x100mm (Dual Inlet): 16ea |
| Inlet Quantity | 7~14 Inlet (when replacing two single inlets with dual inlets, Up to 14 inlets can be used.) |
| Tube Supply Method | Direct tube pallet supply |
| Compatible Tube Types | Diameter: 12~16mm, Length: 75~125mm Manufacturer: VACUTEST KIMA, BD, GREINER, SOYA GREENTEC, INSEPACK, IMPROVE, SARSTEDT, etc. (Please consult with ENERGIUM regarding tube compatibility prior to use.) |
| Printing Resolution | 203dpi |
| Label Printing Method | Thermal printing |
| Barcode Scanner | 2D (PDF417, QR Code, Data Matrix) 1D (Code128, UCC/EAN-128, UPC-E) |
| Compatible Label Sizes | Width: 50mm, Length: 28~35mm, Label Quantity: 2000 label (per 1 label roll) |
| Compatible Receipt Label Roll Size | Width: 57mm, Length: 70mm (Less than) |
| Product Dimension | HENm: 599(W) x 400(H) x 199(D) mm HENm mobile: 450(W) x 1,000(H) x 845(D) mm |
| Product Weight | HENm: 20kgf HENm mobile: 55kgf |
| Power | HENm: AC 100-240 V~, 50/60Hz, 2.2A HENm mobile: AC 100-240 V~, 50/60Hz, 4A |
| Battery | * Li-FePo4, 12.8V 7.5Ah x 2 |
| Continuous Labeling Quantity | * 4,000 Tubes |
| Standby Time | * 13 hours |
| Roller Mixer | * Max 4 tubes (Time control available) |
| Roller mixer Rotation Speed | * 24 rpm |
| Interface | USB A,B Port 5V 200mA, RS232 (optional) |
| Certificates | CE, KC, RoHs |
