Device Disinfection
Setting Standards- Exceeding Expectations

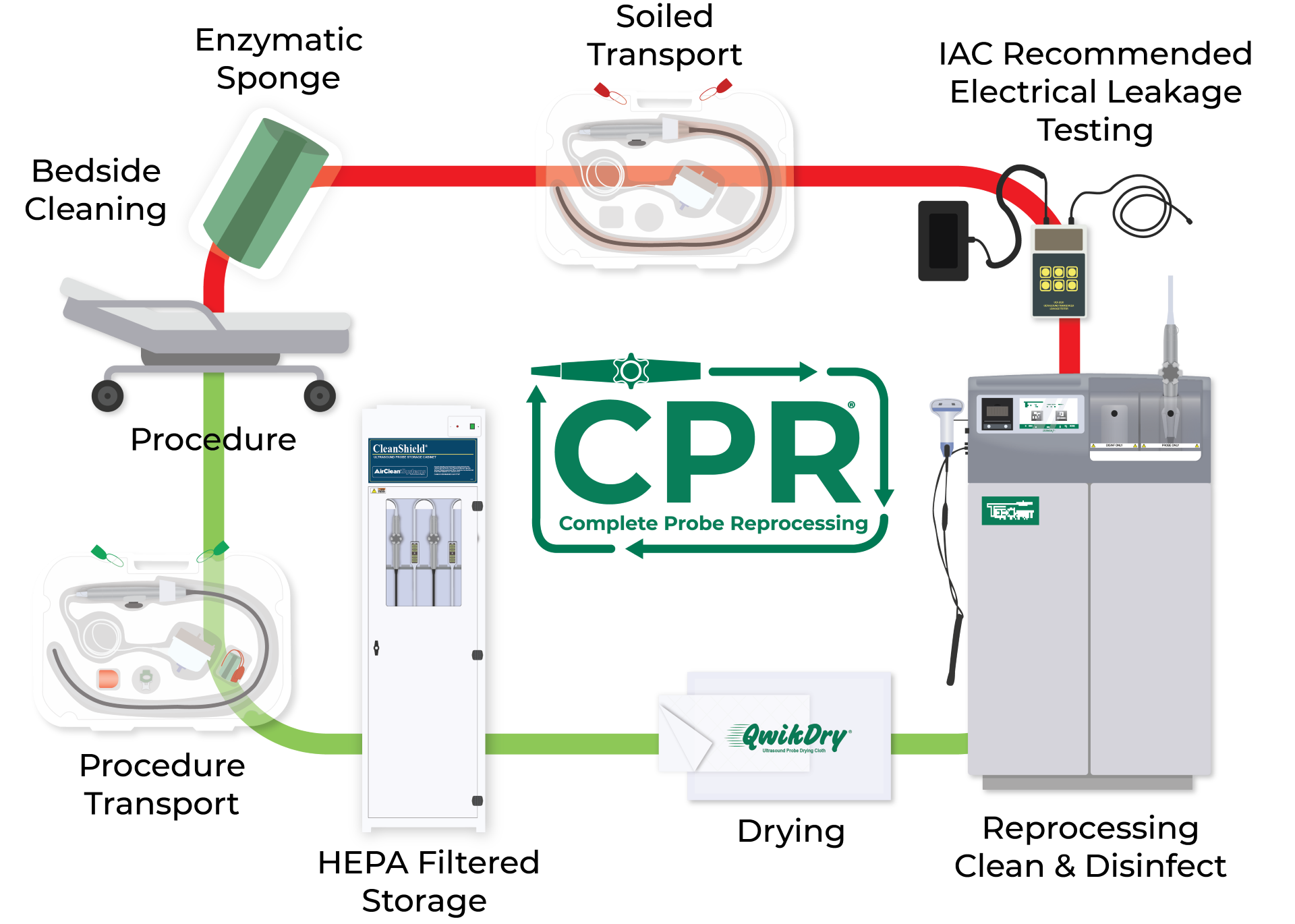

Phoenix Airmid Biomedical can help your facility achieve both cleaning and high-level disinfection of endocavity, surface, and TEE ultrasound probes and deliver patient safety by reducing healthcare-associated infections (HAIs) through automated probe reprocessing. Ensure that the cleanliness of your probes complies with all state and federal regulations through automated cleaning and Health Canada licensed disinfectants. Let Phoenix Airmid Biomedical help you maintain a safe and clean environment where you can focus on what matters most: the patient.

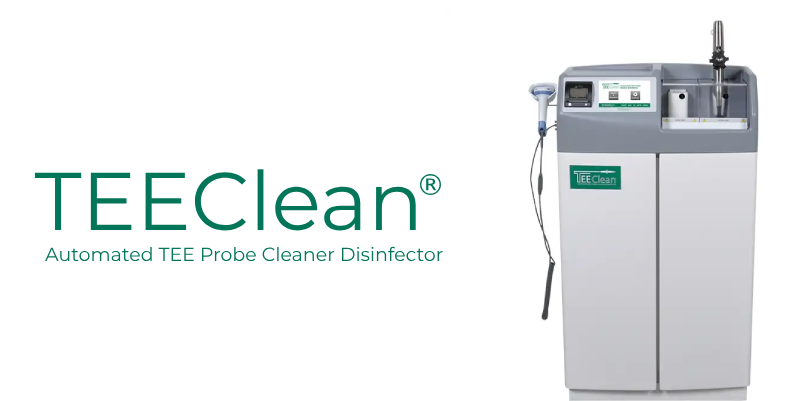

- 5-minute high-level disinfection of TEE probes
- 7" color touch screen display with vivid user icons for easy operation
- Data entry with integrated barcode scanner or manual keyboard entry
| Actual Size | |
|---|---|
| Width | 24" [60.96 cm] |
| Depth | 12" [30.4 cm] |
| Height | 44" [112 cm] |
| Weight | 90 lbs. [40.82 kg] |
| Space and Site Requirements | |
| Width | 36" [91.44 cm] |
| Depth | 12" [30.4 cm] |
| Height from Floor | 72" [180 cm] |
| Electrical Requirements | |
| Service | 120V~ (VAC), 20 Amp, 60 Hz-dedicated circuit terminated in 20 Amp hospital grade GFCI double wall receptacle |
| Ratings | 120 V~, 60 Hz, 8A |
| Fusing | 10A or equivalent |
| Water Supply Requirements | |
| Delivery Pressure | Regulated to 20-25 PSI using a Watts 263A with a pressure gauge and female 1/4" NPT outlet (or equivalent) |
| Flow Rate | 1 gpm at 20 PSI minimum |
| Temperature | Cold water supply, 50°-80° F |
| Shut-Off | A shut-off valve is recommended |
| Connection | 10-feet of 1/4" ID Tubing (provided in installation kit) |
| Quality | EPA quality drinking water at the point of use |
| Water Usage | Approximately 1.75 gallons per processing cycle |
| Drain Requirements | |
| Drain | 1-1/2" Drain pipe no more than 18" above the floor. A special drain connection fitting is provided in the starter kit. |

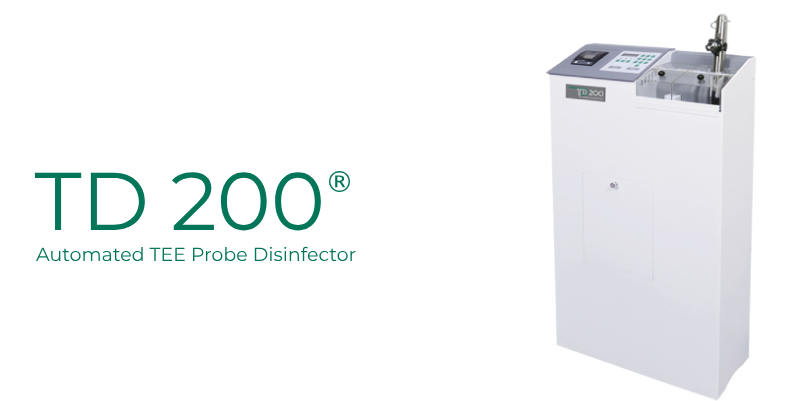

- High-level disinfection complete in 3 minutes
- Built-in advanced vapor management system captures and neutralizes disinfectant fumes
- Microprocessor-controlled for ease of use by medical personnel
| Actual Size | |
|---|---|
| Width | 24" [60.96 cm] |
| Depth | 8" [20.32 cm] |
| Height | 44" [112 cm] |
| Weight | 80 lbs. [36.28 kg] |
| Space and Site Requirements | |
| Width | 36" [91.44 cm] |
| Depth | 8" [20.32 cm] |
| Height from Floor | 72" [180 cm] |
| Electrical Requirements | |
| Service | 120V~ (VAC), 20 Amp, 60 Hz-dedicated circuit terminated in 20 Amp hospital grade GFCI double wall receptacle |
| Ratings | 120 V~, 60 Hz, 8A |
| Fusing | 10A or equivalent |
| Water Supply Requirements | |
| Delivery Pressure | Regulated to 25-35 PSI using a Watts 263A with a pressure gauge and female 1/4" NPT outlet (or equivalent) |
| Flow Rate | 1 gpm at 25 PSI minimum |
| Temperature | Cold water supply, 50°-80° F |
| Shut-Off | A shut-off valve is recommended |
| Connection | 10-feet of 1/4" ID Tubing (provided in installation kit) |
| Quality | High-quality potable water; a high-quality potable water is one that meets Federal Clean Water Standards at the point of use |
| Water Usage | Approximately one gallon per processing cycle |
| Drain Requirements | |
| Drain | 1-1/2" Drain Pipe and Trap Note: A special drain fitting is provided in the installation kit. |

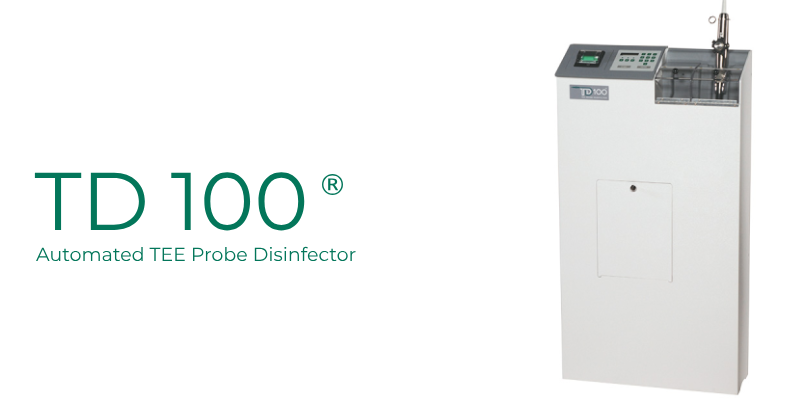

- High-level disinfection complete in 5 minutes
- Five individual rinse cycles after disinfection cycle is complete
- Microprocessor-controlled for ease of use by medical personnel
| Actual Size | |
|---|---|
| Width | 24" [60.96 cm] |
| Depth | 8" [20.32 cm] |
| Height | 44" [112 cm] |
| Weight | 90 lbs. [40.82 kg] |
| Space and Site Requirements | |
| Width | 36" [91.44 cm] |
| Depth | 8" [20.32 cm] |
| Height from Floor | 72" [180 cm] |
| Electrical Requirements | |
| Service | 120V~ (VAC), 20 Amp, 60 Hz-dedicated circuit terminated in 20 Amp hospital grade GFCI double wall receptacle |
| Ratings | 120 V~, 60 Hz, 8A |
| Fusing | 10A or equivalent |
| Water Supply Requirements | |
| Delivery Pressure | Regulated to 20–25 PSI using a Watts 263A with a pressure gauge and female 1/4" NPT outlet (or equivalent) |
| Flow Rate | 1 gpm at 20 PSI minimum |
| Temperature | Cold water supply, 50°–80° F |
| Shut-Off | A shut-off valve is recommended |
| Connection | 10-feet of 1/4" ID Tubing (provided in installation kit) |
| Quality | High-quality potable water; a high-quality potable water is one that meets Federal Clean Water Standards at the point of use. |
| Water Usage | Approximately one gallon per processing cycle |
| Drain Requirements | |
| Drain | 1-1/2" Drain Pipe and Trap Note: A special drain fitting is provided in the installation kit. |
